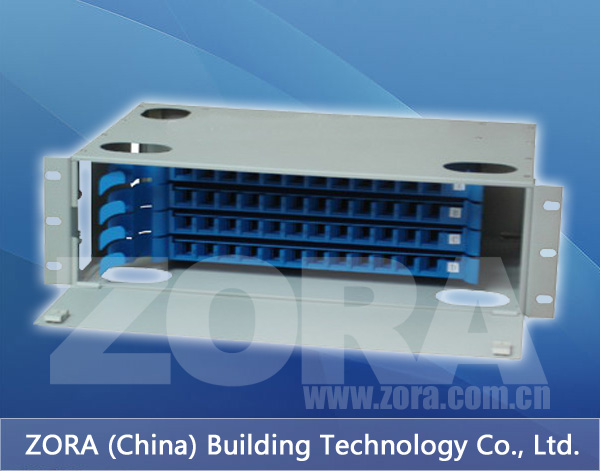

Pull-out distribution cabinet

Fiber ProductsFiber distribution frame

15667

Product Description:

   The distribution cabinet is applicable to the wiring and connection of fiber and optical communication equipments.
    It integrates fused fiber splice, storage and fiber connection, and can manage both bunched fiber cable and ribbon fiber cable. Moreover, it has a large operating space to manage the connection of tail fiber, fiber and adapter.
    Rack-mounted distribution cabinet, with standard dimension of 19inch, is made of cold-rolled sheet, and equipped with blue fiber splice tray. Its front and back door can be opened, thus it can be used for existing equipments directly.

Features:

● Made of cold-rolled sheet, and treated with electrostatic painting;
● Blue fiber splice tray with modular design, made of ABS plastic, and containing 12 cores for each;
● FC，SC，LC … adapters can be installed;
● Each fiber tray can be pulled out, so it is convenient for fiber management;
● It is applicable to 19inch standard distribution cabinet;
● Its front and back door can be opened, so it is convenient for fiber management;
● The fiber port is suitable for single-core, bunched and ribbon fiber cable;
● Reasonable structure design ensures the orderly management of fiber cable;
● Indoor frame type
● White, black, gray and other painting colors are available.
● 12, 24, 48, 96 cores and other cores can be customized.

Range of application:

   It is used for leading in and fixing of fiber cable in wiring room and equipment room, splicing and protection of fiber, storage of tail fiber, as well as storage, connection and management of patch cord. It can be widely applied in telecommunication, fiber to the home, local area network/wide area network, CATV and other communication systems.

Technical parameters:

● Operating temperature: -5℃～+40℃
● Relative humidity: ≤85%(+30℃)
● Atmospheric pressure: 70～106Kpa
● Endurable insertion times: >1000 times
● Standard operation wavelength: 850nm, 1310nm, 1550nm

Specification:
